nVent HOFFMAN RVJ1614HWPL2

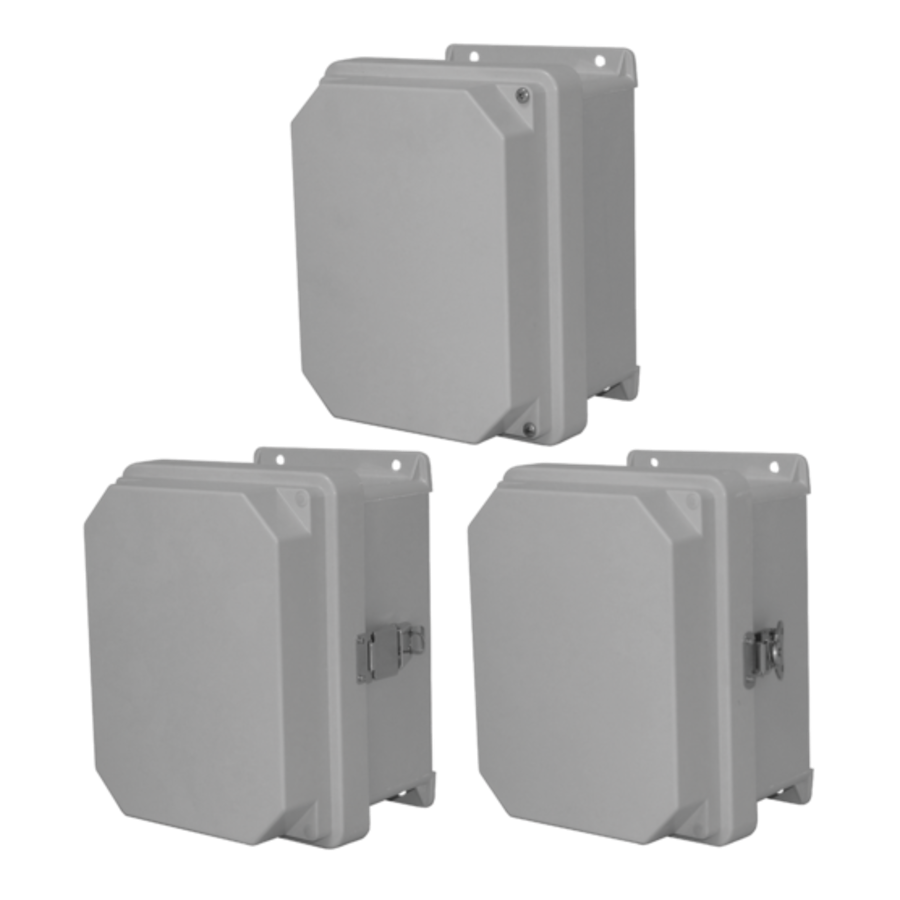

nVent HOFFMAN RVJ1614HWPL2 RVJ Raised Opaque Cover Type 4X
nVent HOFFMAN RVJ1614HWPL2
nVent HOFFMAN RVJ1614HWPL2 RVJ Raised Opaque Cover Type 4XProduct Description
Hoffman Enclosure, Series: VJ Series, 17.32x15.32x6.67, Lt Gray, FRP, HWPL
Attributes
Documents
Features
Attributes
Capacity10.6 lb
ColorLight Gray
Cover TypeOpaque
FinishSmooth Matte
MaterialFiberglass
Mounting TypeWall
NEMA RatingNEMA 3/3R/4/4X/12/13, IP66
SeriesRVJ
Size17.32 in H
Temperature Rating-50 to 150 deg C
Type / StyleStainless steel continuous hinge and stainless-steel padlockable latch
Documents
Features
- Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)
- All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United States
- Enclosures are maintenance free and corrosion resistant
- Made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)
- Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)
- Polyurethane foam-in-place gasket
- Molded mounting flanges and cover corner ribs increase enclosure strength
- Enclosures can be modified to customer specifications
