Sta-Kon RC2207-250
Thomas & Betts Sta-Kon® RC2207-250 RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.07 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
Sta-Kon RC2207-250
Thomas & Betts Sta-Kon® RC2207-250 RC Series Expanded Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.07 in L, Brazed Seam/Serrated Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description

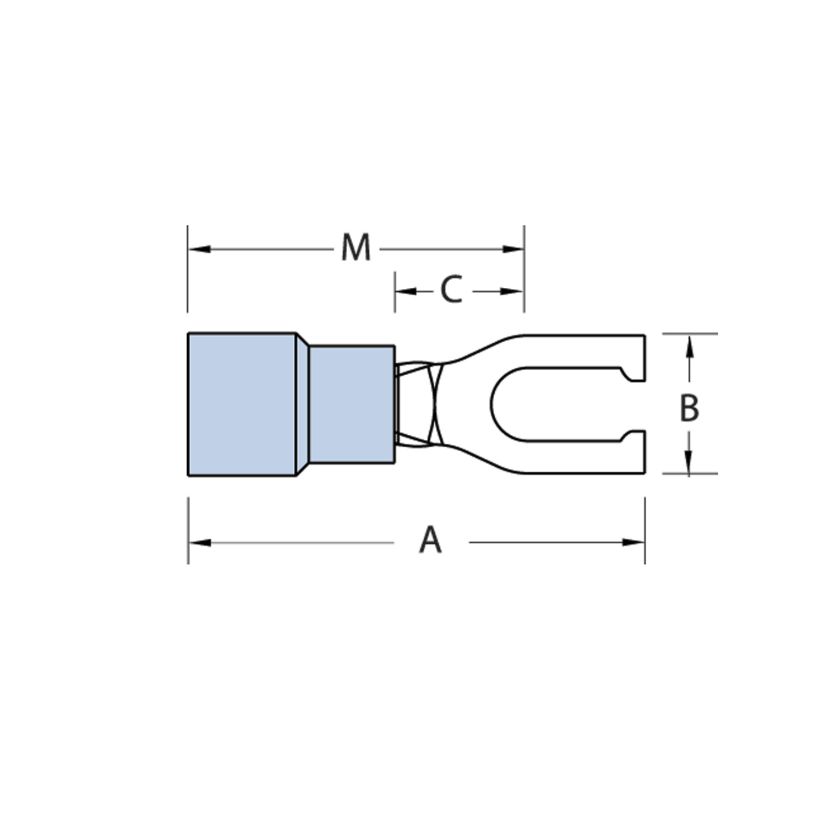

Sta-Kon® Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 1.07 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorYellow
Conductor size12 to 10 AWG
FinishElectroplated Tin
ManufacturerThomas & Betts
MaterialCopper
SeriesRC Series
Temperature Rating105 deg C
Tongue Size0.31 in W x 0.04 in THK
Tongue TypeLocking Fork
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 VAC
Country of OriginUnited States
Documents
Features
Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ringBrazed seam barrel is serrated for high pull-out valueInsulation is Color codedWT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
