Leviton CSB3-15W
LevitonĀ® CSB3-15W 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating
Leviton CSB3-15W
LevitonĀ® CSB3-15W 3-Way Grounding AC Quiet Toggle Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power RatingIn Stock: 34More Info
|
BrandLeviton
MFG #CSB3-15W
Werner Part #2013826
UPC078477236314
In Stock: 34More Info
|
BrandLeviton
MFG #CSB3-15W
Werner Part #2013826
UPC078477236314
Product Description
LevitonĀ® AC Quiet Toggle Switch, 3-Way Grounding, 120/277 VAC, 15 A, 1/2, 2 hp Power, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wired Terminal, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 1.47 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeToggle
Amperage Rating15
ColorWhite
Country of OriginMX
Dimensions4.06 in H x 1.31 in W x 1.47 in D
Electrical Ratings1/2, 2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire

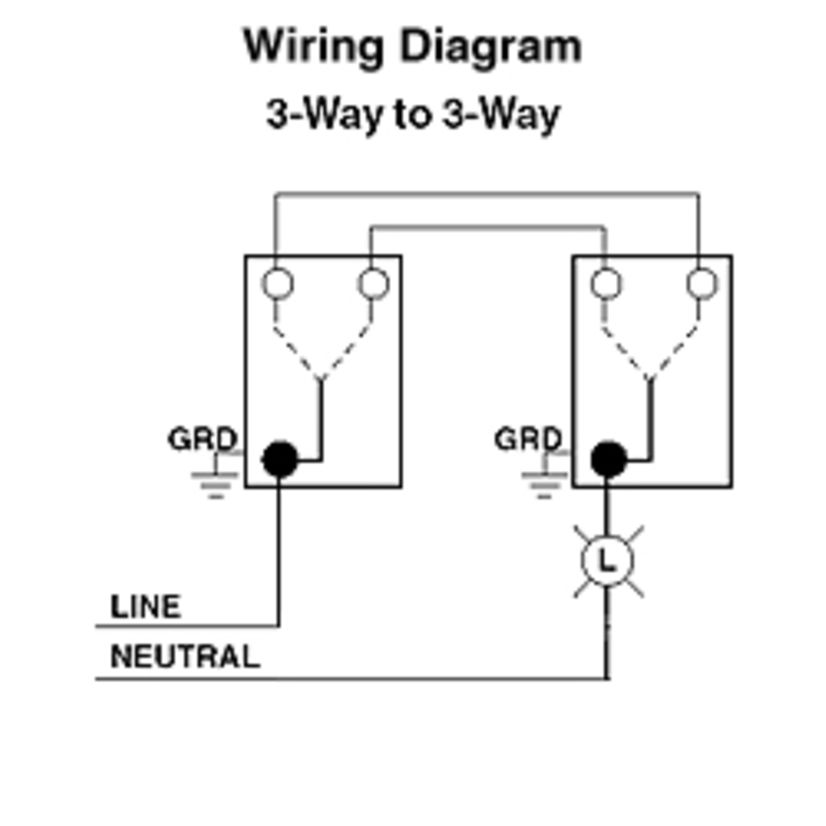

Type3-Way
Type / Style3-Way Grounding
Voltage Rating120/277 VAC
Documents
Features
Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installationHeavy gauge, rust resistant steel mounting strapAccepts no 14 to 12 AWG copper or copper clad wireConvenient break-OFF plaster ears for best alignmentLarge switch contacts for maximum conductivity1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
