Leviton 2770
Leviton® V-0-Max™ 2770 3-Phase Y Non-Grounding Locking Receptacle, 347/600 VAC, 30 A, 4 Poles, 4 Wires, Black
Leviton 2770
Leviton® V-0-Max™ 2770 3-Phase Y Non-Grounding Locking Receptacle, 347/600 VAC, 30 A, 4 Poles, 4 Wires, BlackBrandLeviton
MFG #2770
Werner Part #1406837
UPC078477046227
BrandLeviton
MFG #2770
Werner Part #1406837
UPC078477046227
Product Description
Leviton® V-0-Max™ Locking Receptacle, 3-Phase Y Non-Grounding, 347/600 VAC, 30 A, 4 Poles, 4 Wires, NEMA L20-30R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D
Attributes
Documents
Features
Specifications
Attributes
Amperage Rating30
ColorBlack
Country of OriginMX
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
ManufacturerLeviton
MaterialPolybutylene Terephthalate

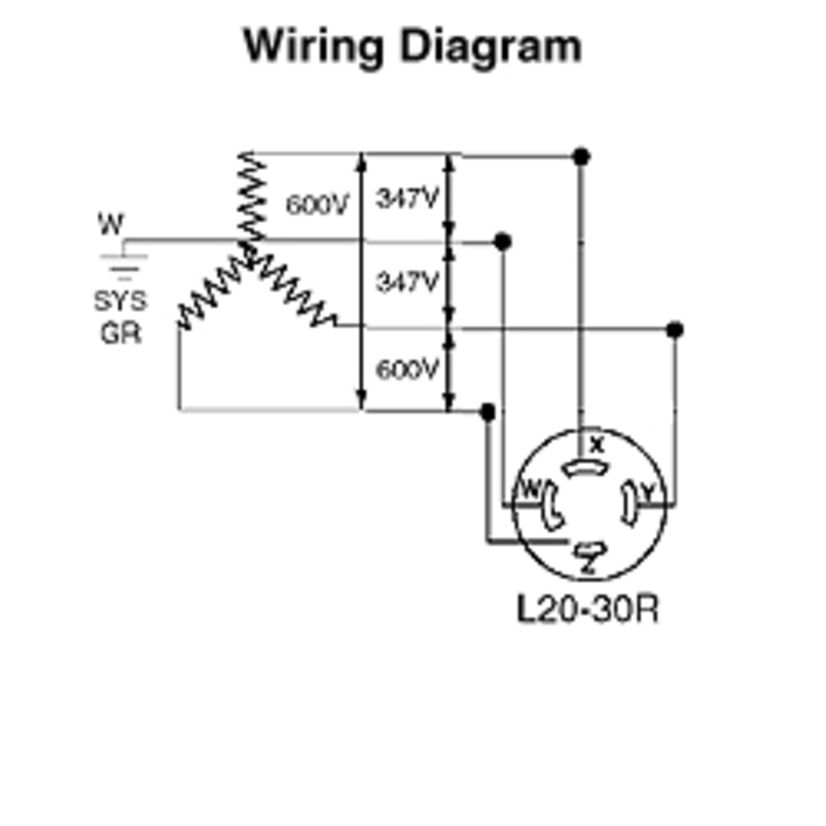

NEMA RatingNEMA L20-30R
Number of Poles4
Number of Wires4
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type3-Phase Y Non-Grounding
Type / Style3-Phase Y Non-Grounding
Voltage Rating347/600 VAC
Documents
Features
Full rated current limitingRatings and NEMA ID permanently marked on device for identificationBox mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
