Color-Keyed MD40F-4
Thomas & Betts Color-Keyed® Kube™ MD40F-4 1-Load Female Motor Lead Pigtail Disconnect, 4/0 AWG Beryllium Copper Conductor, Die Code: 54, Copper
Color-Keyed MD40F-4
Thomas & Betts Color-Keyed® Kube™ MD40F-4 1-Load Female Motor Lead Pigtail Disconnect, 4/0 AWG Beryllium Copper Conductor, Die Code: 54, CopperInventory Not Available
BrandColor-Keyed
MFG #MD40F-4
Werner Part #3912621
UPC786209893277
Inventory Not Available
BrandColor-Keyed
MFG #MD40F-4
Werner Part #3912621
UPC786209893277
Product Description

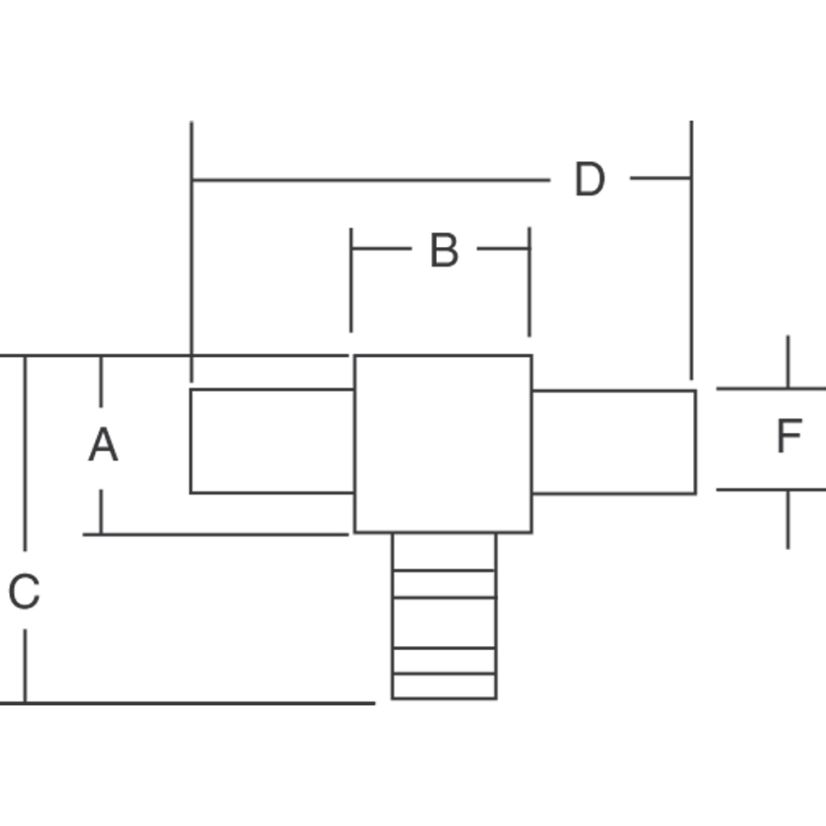

Color-Keyed® Kube™ Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 4/0 AWG Conductor, Die Code: 54, 600 VAC, Boot MDBOOT4 Insulation, 3/4 in Strip Length, Body Size 4, Tin Plated Finish, 0.813 in Mounting Hole, Copper, Purple, 2.89 in L x 1.25 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size4/0 AWG
Conductor TypeBeryllium Copper
Country of OriginMX
Die Code54
Hole SizeMounting Hole Size: 0.813 in
Insulation TypeBoot MDBOOT4
ManufacturerThomas & Betts
Type / Style1-Load Female
Voltage600 VAC
Documents
Applications
For 600 VAC and 5 kVAC applications
Features
One line to one load (2-wire)Fast, snap together assembly offers maximum labor savingsNot need for nuts, bolts and washers or insulating tape - simply slide on reusable bootQuick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposureMeet or exceed electrical and mechanical performance of bolted connectionsConstructed of high conductivity copper with tin plated finishThermoplastic elastomer insulatorQuick, reliable change out of electric motors with no bolting, taping or loose connectionsTotal assembly fits into tight motor housingsFemale disconnects equipped with beryllium copper interface band for dependable connections
Specifications
Body Size 4, Tin Plated Finish
