Color-Keyed DTW516
Thomas & Betts Color-Keyed® Dragon Tooth® DTW516 Transition Washer, 0.34 in Nominal, 5/16 in Bolt, 1 in OD, 0.035 in THK, Copper Alloy
Color-Keyed DTW516
Thomas & Betts Color-Keyed® Dragon Tooth® DTW516 Transition Washer, 0.34 in Nominal, 5/16 in Bolt, 1 in OD, 0.035 in THK, Copper AlloyOut of Stockmore info
|
BrandColor-Keyed
MFG #DTW516
Werner Part #423802
UPC786210868448
Out of Stockmore info
|
BrandColor-Keyed
MFG #DTW516
Werner Part #423802
UPC786210868448
Product Description
Color-Keyed® Dragon Tooth® Transition Washer, 0.34 in Nominal, 5/16 in Bolt, 1 in OD, 0.035 in Thickness, Silver, Copper Alloy, Tin Coated
Attributes
Documents
Features
Specifications
Attributes
Bolt/Rod Size5/16 in
Country of OriginUS
ManufacturerThomas & Betts
Nominal Size0.34 in
Outside Diameter1 in
Thickness0.035 in
Documents
Features

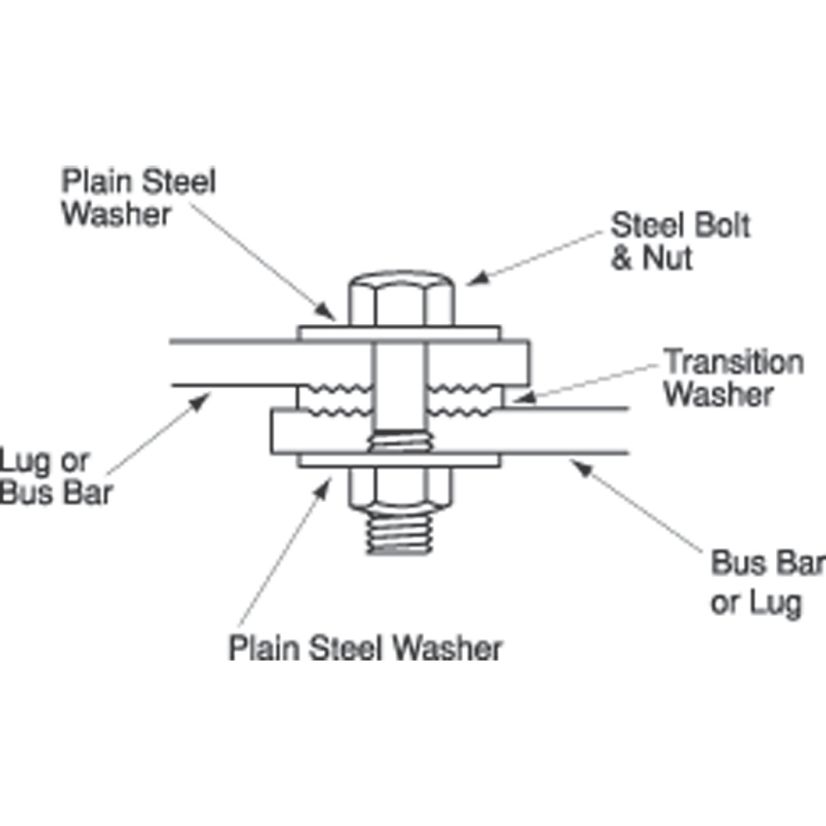

Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compoundsConnect copper to aluminum, copper to copper or aluminum to aluminum componentLower installed cost - no need to grind aluminum surfaces, apply compounds or use spring type washersQuick, dependable and versatile125 to 160 in-lb bolt torque0.34 in ID
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E9809
