Color-Keyed DTW14
Thomas & Betts Color-Keyed® Dragon Tooth® DTW14 Transition Washer, 0.27 in Nominal, 1/4 in Bolt, 0.68 in OD, 0.035 in THK, Copper
Color-Keyed DTW14
Thomas & Betts Color-Keyed® Dragon Tooth® DTW14 Transition Washer, 0.27 in Nominal, 1/4 in Bolt, 0.68 in OD, 0.035 in THK, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Color-Keyed® Dragon Tooth® Transition Washer, 0.27 in Nominal, 1/4 in Bolt, 0.68 in OD, 0.035 in Thickness, Silver, Copper, Tin Coated
Attributes
Documents
Features
Specifications
Attributes
Bolt/Rod Size1/4 in
Country of OriginUS
ManufacturerThomas & Betts
Nominal Size0.27 in
Outside Diameter0.68 in
Thickness0.035 in
Documents
Features

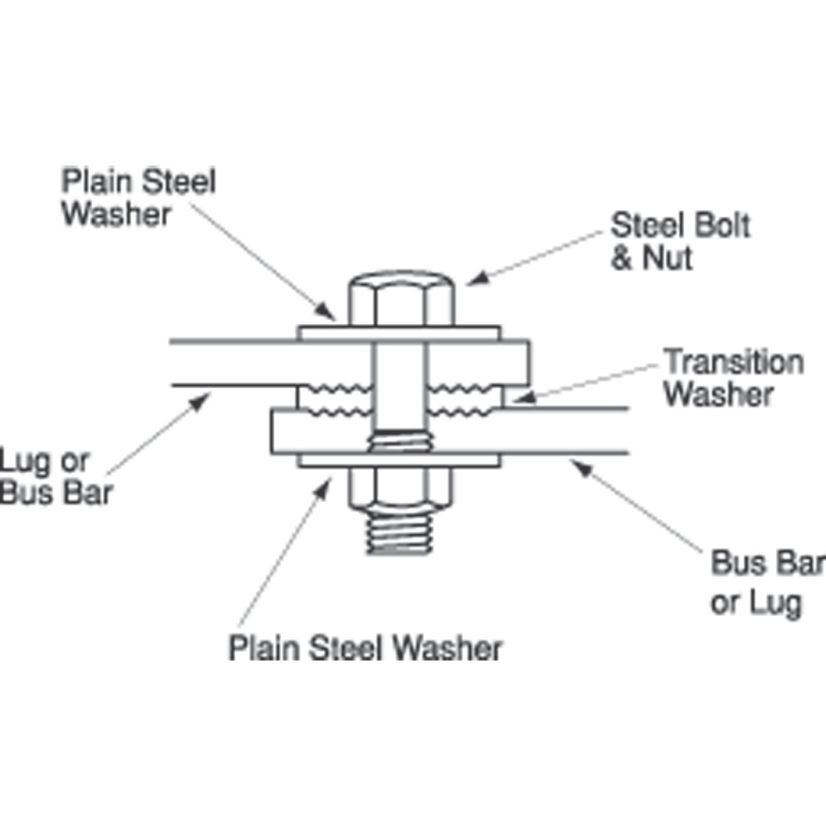

Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compoundsConnect copper to aluminum, copper to copper or aluminum to aluminum componentLower installed cost - no need to grind aluminum surfaces, apply compounds or use spring type washersQuick, dependable and versatile50 to 80 in-lb bolt torque0.27 in ID
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E9809
