Color-Keyed 61955
Thomas & Betts Color-Keyed® 61955 Bi-Metal Dual Rated Pin Connector, 4/0 AWG Conductor, 1.63 in L Pin, Aluminum, Red
Color-Keyed 61955
Thomas & Betts Color-Keyed® 61955 Bi-Metal Dual Rated Pin Connector, 4/0 AWG Conductor, 1.63 in L Pin, Aluminum, RedOut of Stockmore info
|
BrandColor-Keyed
MFG #61955
Werner Part #409885
UPC786210619552
Out of Stockmore info
|
BrandColor-Keyed
MFG #61955
Werner Part #409885
UPC786210619552
Product Description
Color-Keyed® Pin Connector, Bi-Metal Dual Rated, Aluminum/Copper Conductor, 4/0 AWG Conductor, Die Code: 71H, 1.63 in Pin Length, 600 VAC, Specifications: 2-1/2 in Body Length after Installing, 1-7/16 in L Wire Stripe, Tin Plated Finish, Aluminum, 90 deg C, 4.1 in Overall Length, Red
Attributes
Documents
Features
Specifications
Attributes
Conductor size4/0 AWG
Conductor TypeAluminum/Copper
Country of OriginMX
Die Code71H
LengthPin: 1.63 in
ManufacturerThomas & Betts
Overall Length4.1 in
Type / StyleBi-Metal Dual Rated
Voltage600 VAC
Documents
Features
Converts an aluminum cable into a 2 sizes smaller copper pigtailUpgrades connection by eliminating cold flow and oxidation of aluminumBarrel prefilled with joint compoundAluminum cable size 300 kcmil4/0 AWG copper pigtail wireNeoprene insulationAluminum cable, copper pigtail wireElectro tin plated finish
Specifications

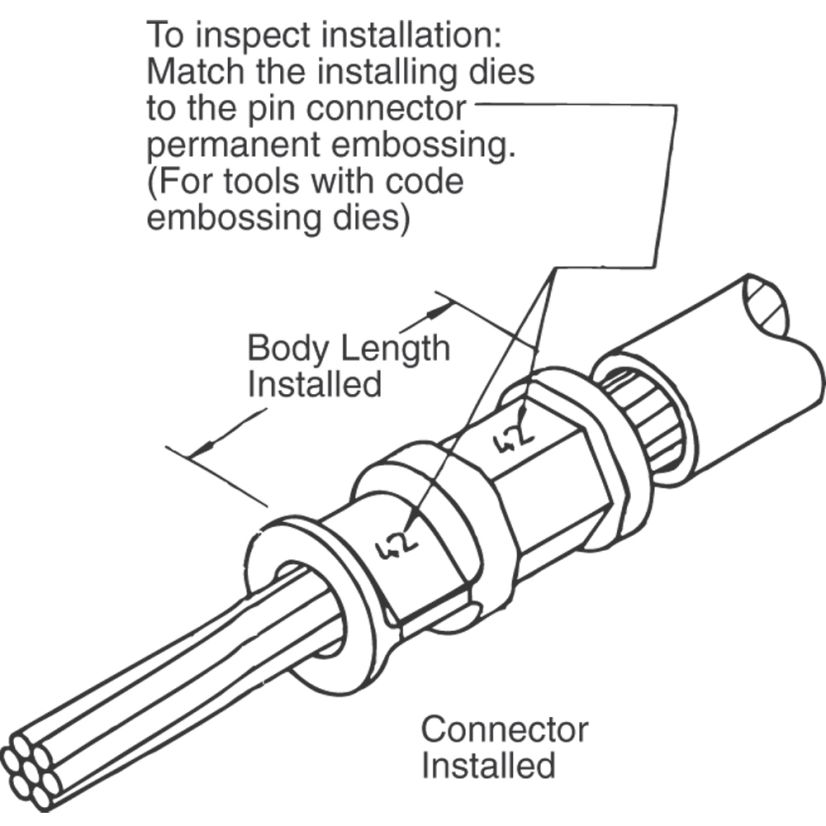

2-1/2 in Body Length after Installing, 1-7/16 in L Wire Stripe, Tin Plated Finish
