Color-Keyed 61162
Thomas & Betts Color-Keyed® 61162 1-Hole Compact Size Equipment Lug, 300 kcmil Aluminum Conductor, Die Code: 66H, 1/2 in Stud, Aluminum
Color-Keyed 61162
Thomas & Betts Color-Keyed® 61162 1-Hole Compact Size Equipment Lug, 300 kcmil Aluminum Conductor, Die Code: 66H, 1/2 in Stud, AluminumOut of Stockmore info
|
Out of Stockmore info
|
Product Description

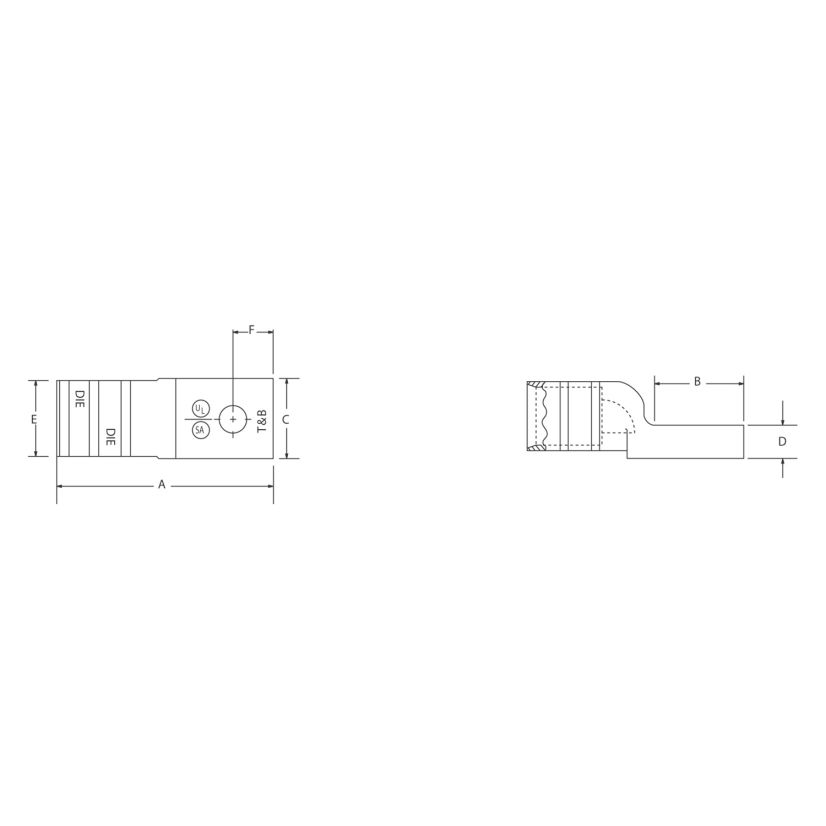

Color-Keyed® Equipment Lug, 1-Hole Compact Size, Aluminum Conductor, 300 kcmil Conductor, Die Code: 66H, 35 kVAC, 1/2 in Stud, Straight Tongue, 1.23 in L x 0.98 in W x 0.25 in THK Tongue, 2-1/2 in Overall Length, Blind End/Long Barrel, 0.85 in Dia Barrel, Neoprene Insulation, Tin Plated Finish, 90 deg C, Aluminum, White
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.85 in Dia
Barrel TypeBlind End/Long
Conductor size300 kcmil
Conductor TypeAluminum
Country of OriginMX
Die Code66H
ManufacturerThomas & Betts
Overall Length2-1/2 in
Stud Size1/2 in
Tongue Size1.23 in L x 0.98 in W x 0.25 in THK
Tongue TypeStraight
Type / Style1-Hole Compact Size
Voltage35 kVAC
Documents
Applications
For use with aluminum cables only, can be directly substituted for equipment mechanical lugs in most applications
Features
For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applicationsDesigned for the right combination of equivalent sizes (example 4/0 AWG aluminum to 2/0 AWG copper)Factory filled with joint compoundShort sleeve formElectro tin plated for corrosion resistanceSupplied with neoprene insulating coversCable area clearly identified on lugOnly 7 dies handle all 14 lug sizesCan be directly substituted for equipment mechanical lugs in most applications
Specifications
Neoprene Insulation, Tin Plated Finish
