Color-Keyed 60284
Thomas & Betts Color-Keyed® 60284 2-Hole Compression Connector Lug, 1000 kcmil Aluminum/Copper Conductor, Die Code: 140H, 1/2 in Stud, Aluminum
Color-Keyed 60284
Thomas & Betts Color-Keyed® 60284 2-Hole Compression Connector Lug, 1000 kcmil Aluminum/Copper Conductor, Die Code: 140H, 1/2 in Stud, AluminumOut of Stockmore info
|
BrandColor-Keyed
MFG #60284
Werner Part #3761297
UPC786210602844
Out of Stockmore info
|
BrandColor-Keyed
MFG #60284
Werner Part #3761297
UPC786210602844
Product Description

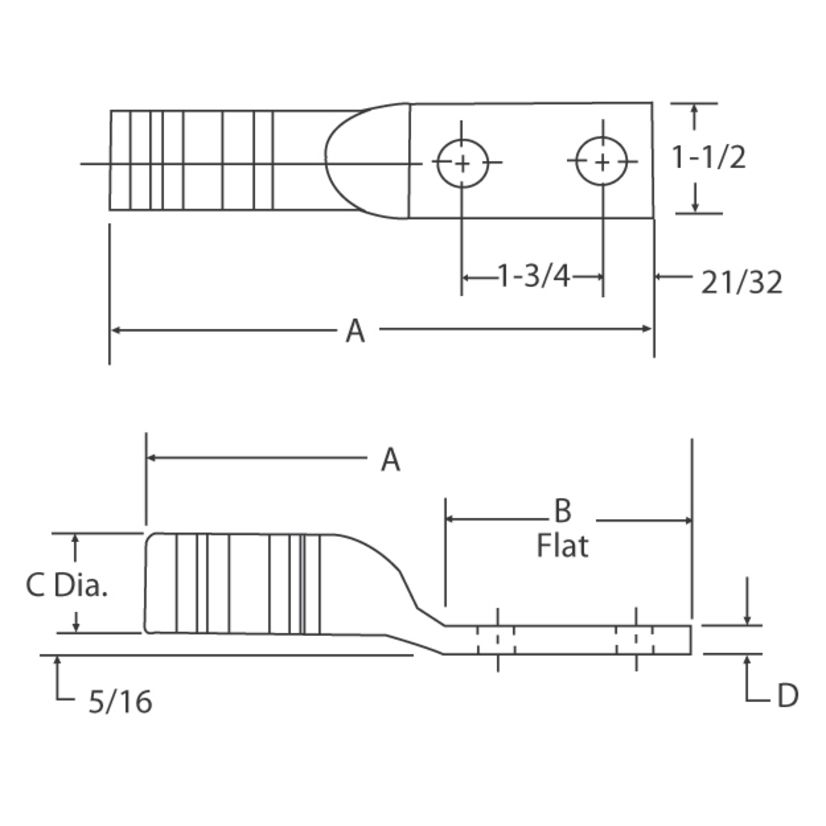

Color-Keyed® Compression Connector Lug, 2-Hole, Aluminum/Copper Conductor, 1000 kcmil Conductor, Die Code: 140H, 35 kVAC, 1/2 in Stud, Straight Tongue, 3 in L x 2-1/2 in W x 1/2 in THK Tongue, 7.78 in Overall Length, Blind End/Long Barrel, 1.77 in Dia Barrel, 1-3/4 in Hole Spacing, Tin Plated Finish, 90 deg C, Aluminum
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1.77 in Dia
Barrel TypeBlind End/Long
Conductor size1000 kcmil
Conductor TypeAluminum/Copper
Country of OriginMX
Die Code140H
ManufacturerThomas & Betts
Overall Length7.78 in
Stud Size1/2 in
Tongue Size3 in L x 2-1/2 in W x 1/2 in THK
Tongue TypeStraight
Type / Style2-Hole
Voltage35 kVAC
Documents
Features
High conductivity wrought aluminum constructionFor aluminum and copper concentric conductors and compact code aluminum strandsFilled with oxide inhibitor compoundFor 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
Specifications
1-3/4 in Hole Spacing, Tin Plated Finish
