Color-Keyed 60130
Thomas & Betts Color-Keyed® 60130 1-Hole Compression Lug, 1/0 AWG Aluminum/Copper Conductor, Die Code: 50, 3/8 in Stud, Aluminum
Color-Keyed 60130
Thomas & Betts Color-Keyed® 60130 1-Hole Compression Lug, 1/0 AWG Aluminum/Copper Conductor, Die Code: 50, 3/8 in Stud, AluminumOut of Stockmore info
|
Out of Stockmore info
|
Product Description

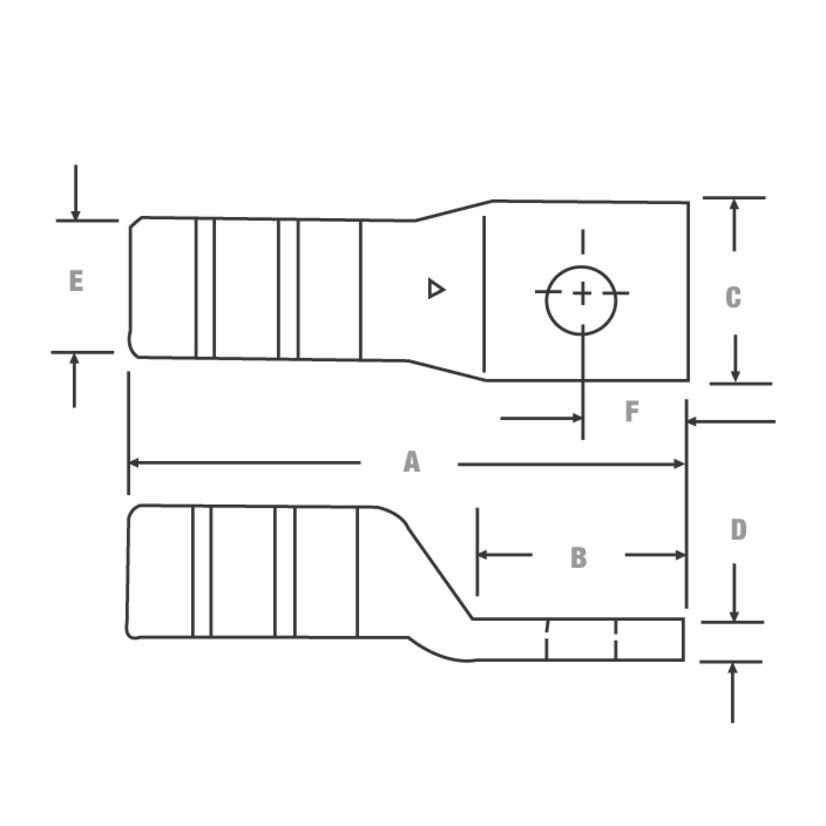

Color-Keyed® Compression Lug, 1-Hole, Aluminum/Copper Conductor, 1/0 AWG Conductor, Die Code: 50, 35 kVAC, 3/8 in Stud, Straight Tongue, 0.97 in L x 0.88 in W x 0.19 in THK Tongue, 2.51 in Overall Length, Blind End/Long Barrel, 0.62 in Dia Barrel, 90 deg C, Aluminum, Tan
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.62 in Dia
Barrel TypeBlind End/Long
Conductor size1/0 AWG
Conductor TypeAluminum/Copper
Country of OriginMX
Die Code50
ManufacturerThomas & Betts
Overall Length2.51 in
Stud Size3/8 in
Tongue Size0.97 in L x 0.88 in W x 0.19 in THK
Tongue TypeStraight
Type / Style1-Hole
Voltage35 kVAC
Documents
Features
For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applicationsEasily matched to the correct Color-Keyed® installing die for positive compressionsHardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous massLong compression areas ensure complete contactMultiple compressions prevent creep of aluminum conductorsFilled with high temperature oxide inhibiting compoundElectro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistanceHigh conductivity wrought aluminum construction
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E9809|CSA Certified
