Color-Keyed 54920BE
Thomas & Betts Color-Keyed® 54920BE 54900 1-Hole Compression Lug, 600 kcmil Copper/Stranded Conductor, Die Code: 94, 5/8 in Stud, Copper
Color-Keyed 54920BE
Thomas & Betts Color-Keyed® 54920BE 54900 1-Hole Compression Lug, 600 kcmil Copper/Stranded Conductor, Die Code: 94, 5/8 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

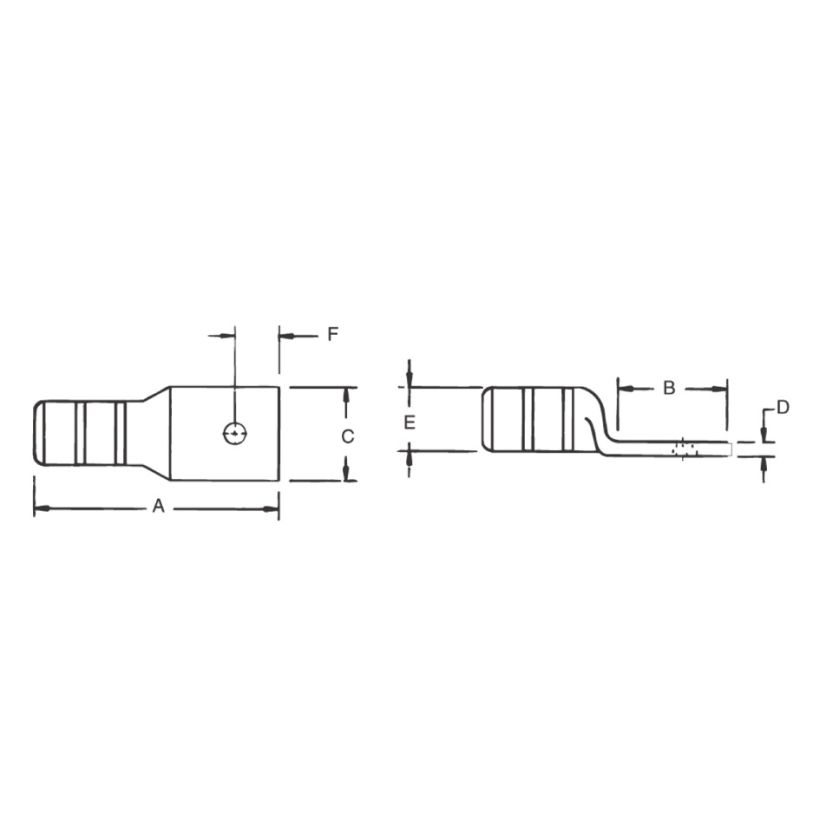

Color-Keyed® Compression Lug, 1-Hole, Series: 54900, Copper/Stranded Conductor, 600 kcmil Conductor, Die Code: 94, 35 kVAC, 5/8 in Stud, Straight Tongue, 1.58 in L x 1.75 in W x 0.24 in THK Tongue, 4.39 in Overall Length, Blind End/Long Barrel, 1.2 in Dia Barrel, 0.656 in Mounting Hole, Copper, Green
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size1.2 in Dia
Barrel TypeBlind End/Long
Conductor size600 kcmil
Conductor TypeCopper/Stranded
Country of OriginMX
Die Code94
Hole SizeMounting Hole Size: 0.656 in
ManufacturerThomas & Betts
Overall Length4.39 in
Stud Size5/8 in
Tongue Size1.58 in L x 1.75 in W x 0.24 in THK
Tongue TypeStraight
Type / Style1-Hole
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
Connectors have colored bands or colored dots that correspond to color markings on the diesColor-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compressionConnection by compressionHigh quality connection at a low installed costHigh conductivity wrought copper construction5/8 in hole center to endTin plated finish
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 486A|UL 467|UL File No. E9809|CSA C22.2 File No. 65/04
