Color-Keyed 54913BEUF
Thomas & Betts Color-Keyed® 54913BEUF 54900 1-Hole Compression Connector Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/2 in Stud, Copper
Color-Keyed 54913BEUF
Thomas & Betts Color-Keyed® 54913BEUF 54900 1-Hole Compression Connector Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/2 in Stud, CopperOut of Stockmore info
|
BrandColor-Keyed
MFG #54913BEUF
Werner Part #64233
UPC786210648057
Out of Stockmore info
|
BrandColor-Keyed
MFG #54913BEUF
Werner Part #64233
UPC786210648057
Product Description

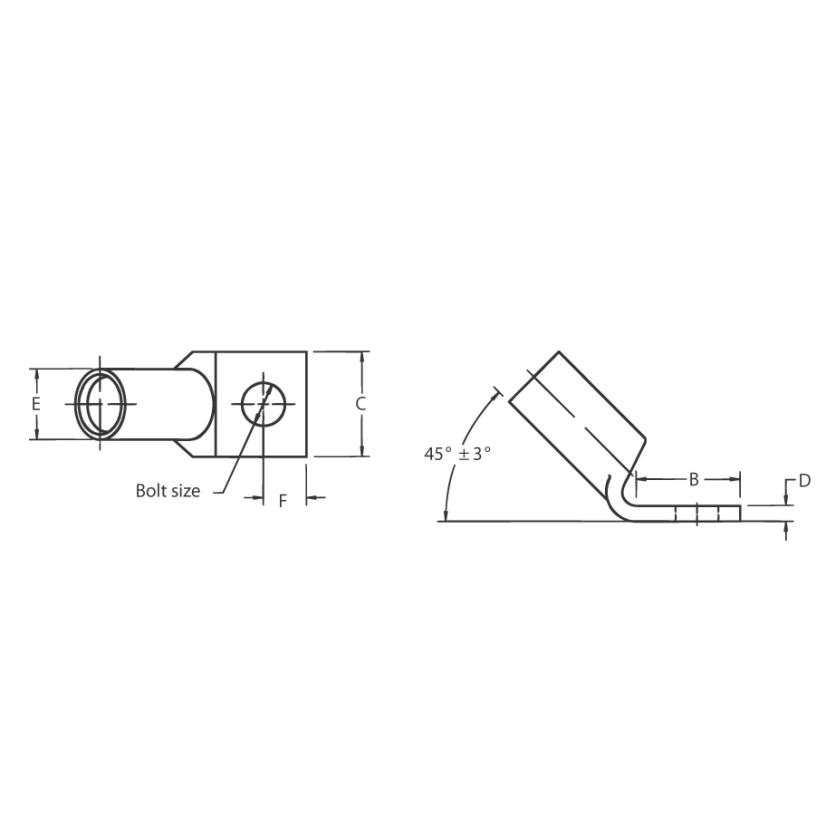

Color-Keyed® Compression Connector Lug, 1-Hole, Series: 54900, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 35 kVAC, 1/2 in Stud, 45 deg Tongue, 1.25 in L x 1.13 in W x 0.14 in THK Tongue, Blind End/Long Barrel, 0.77 in Dia Barrel, Tin Plated Finish, 0.531 in Mounting Hole, Copper, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.77 in Dia
Barrel TypeBlind End/Long
Conductor size250 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code62
Hole SizeMounting Hole Size: 0.531 in
ManufacturerThomas & Betts
Stud Size1/2 in
Tongue Size1.25 in L x 1.13 in W x 0.14 in THK
Tongue Type45 deg
Type / Style1-Hole
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
High conductivity wrought copper constructionConnectors have colored bands or colored dots that correspond to color markings on the diesColor-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compressionConnection by compressionHigh quality connection at a low installed cost
Specifications
Tin Plated Finish
