Color-Keyed 54770
Thomas & Betts Color-Keyed® 54770 Large Size Compression Connector, C Shape, 1 Taps, 4/0 AWG to 350 kcmil Main/Run, 6 AWG to 250 kcmil Tap, Copper
Color-Keyed 54770
Thomas & Betts Color-Keyed® 54770 Large Size Compression Connector, C Shape, 1 Taps, 4/0 AWG to 350 kcmil Main/Run, 6 AWG to 250 kcmil Tap, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

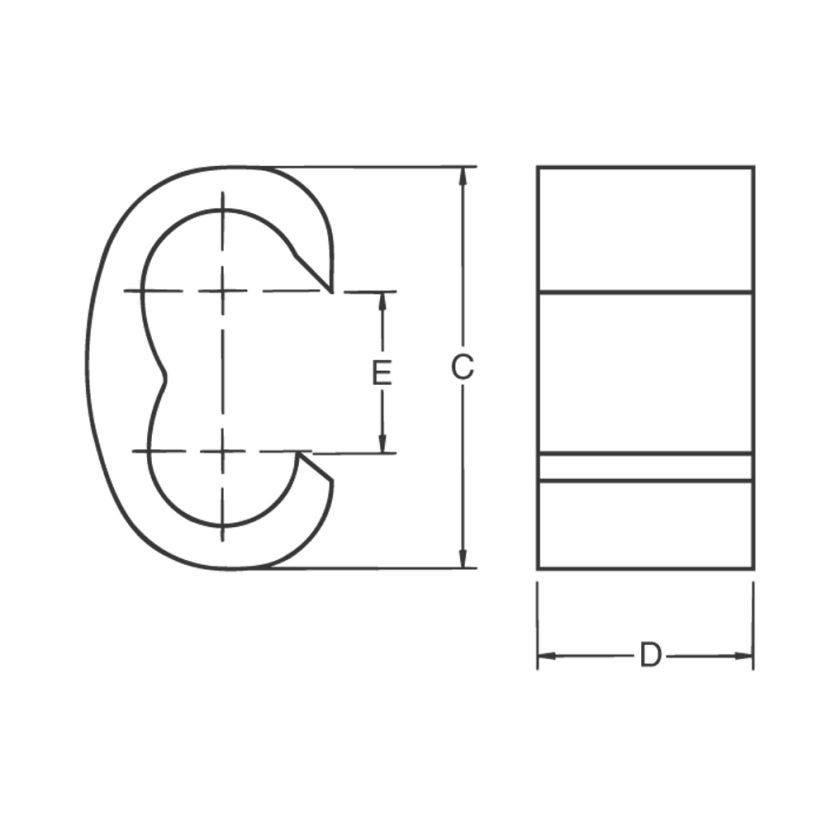

Color-Keyed® Compression Connector, Large Size, C, 1 Taps, 4/0 AWG to 350 kcmil Main/Run, 6 AWG to 250 kcmil Tap, 600 VAC, Copper Conductor, 106H Die Code, Black Color, 2 Crimps, Copper, Plain, 1 in L x 1-11/16 in H
Attributes
Documents
Features
Specifications
Attributes
Conductor TypeCopper
Country of OriginUS
ManufacturerThomas & Betts
ShapeC
Tap Size6 AWG to 250 kcmil
Type / StyleLarge Size
Voltage600 VAC
Documents
Features
More economical than other taps and split bolts in terms of purchase, inventory, installation time, insulation and maintenanceColor coded for easy matching with proper dieBarely larger than conductor insulation once installedEasy to work with in tight spacesRecommended for TBM14M, TBM15I, TBM12 and 13100A installing die tools
Specifications
106H Die Code, Black Color, 2 Crimps
