Color-Keyed 54482
Thomas & Betts Color-Keyed® 54482 54400 2-Hole High Voltage Compression Lug, 350 kcmil Copper Conductor, Die Code: 71R, 1/2 in Stud, Copper
Color-Keyed 54482
Thomas & Betts Color-Keyed® 54482 54400 2-Hole High Voltage Compression Lug, 350 kcmil Copper Conductor, Die Code: 71R, 1/2 in Stud, CopperOut of Stockmore info
|
BrandColor-Keyed
MFG #54482
Werner Part #405685
UPC786210544823
Out of Stockmore info
|
BrandColor-Keyed
MFG #54482
Werner Part #405685
UPC786210544823
Product Description

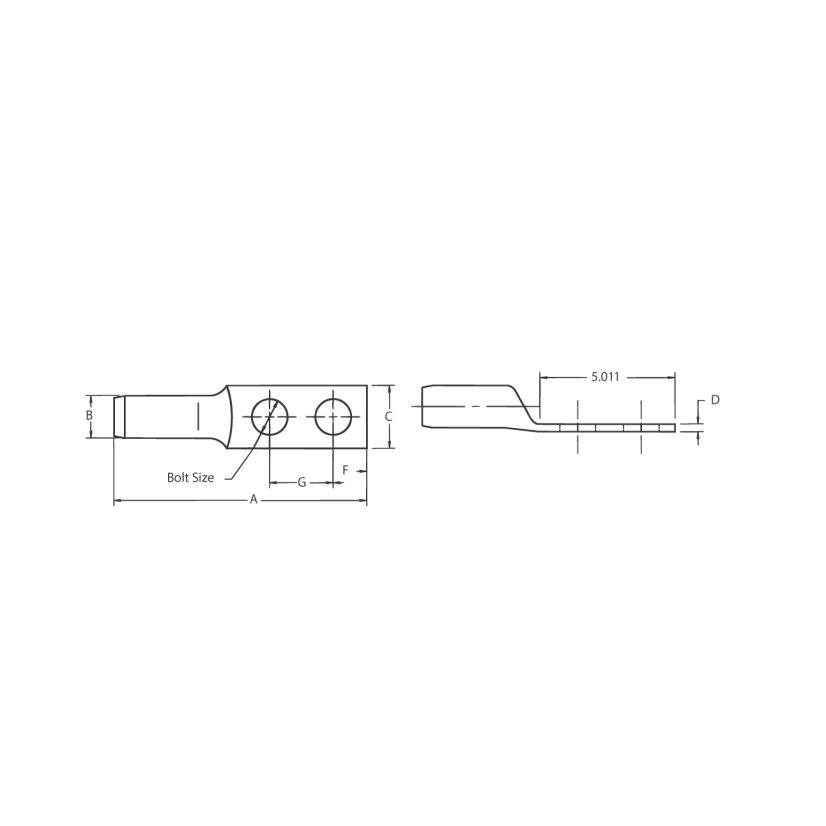

Color-Keyed® Compression Lug, 2-Hole High Voltage, Series: 54400, Copper Conductor, 350 kcmil Conductor, Die Code: 71R, 35 kV, 1/2 in Stud, Straight Tongue, 5.011 in L x 1.29 in W x 0.19 in THK Tongue, 5.35 in Overall Length, Blind End/Long Barrel, 7/8 in Dia Barrel, 1-3/4 in Hole Spacing, 105 deg C, 0.531 in Mounting Hole, Copper, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size7/8 in Dia
Barrel TypeBlind End/Long
Conductor size350 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code71R
Hole SizeMounting Hole Size: 0.531 in
ManufacturerThomas & Betts
Overall Length5.35 in
Stud Size1/2 in
Tongue Size5.011 in L x 1.29 in W x 0.19 in THK
Tongue TypeStraight
Type / Style2-Hole High Voltage
Voltage35 kV
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
Peep holeHigh conductivity wrought copperTranslucent nylon insulator provides easy viewing of die code/colorEasy to install with standard Color-Keyed® compression toolsNylon insulation
Specifications
1-3/4 in Hole Spacing
