Color-Keyed 54172-TB
Thomas & Betts Color-Keyed® 54172-TB 54100 1-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/4 in Stud, Copper
Color-Keyed 54172-TB
Thomas & Betts Color-Keyed® 54172-TB 54100 1-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: 62, 1/4 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

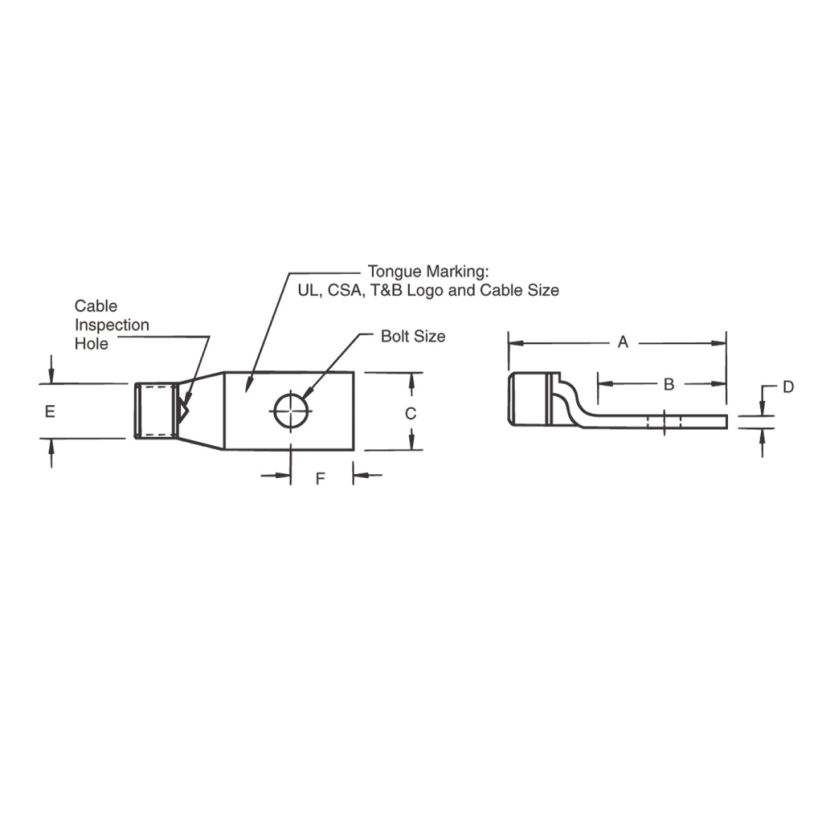

Color-Keyed® Compression Lug, 1-Hole, Series: 54100, Copper Conductor, 250 kcmil Conductor, Die Code: 62, 35 kVAC, 1/4 in Stud, 0.65 in L x 1.13 in W x 0.14 in THK Tongue, 2 in Overall Length, Standard Barrel, 0.77 in Dia Barrel, 0.281 in Mounting Hole, Copper, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.77 in Dia
Barrel TypeStandard
Conductor size250 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code62
Hole SizeMounting Hole Size: 0.281 in
ManufacturerThomas & Betts
Overall Length2 in
Stud Size1/4 in
Tongue Size0.65 in L x 1.13 in W x 0.14 in THK
Type / Style1-Hole
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
Peep holeHigh conductivity wrought copper constructionTin plated finish
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E9809|CSA Certified
