Color-Keyed 54147UF
Thomas & Betts Color-Keyed® 54147UF 54100 1-Hole Compression Connector Lug, 1 AWG Copper Conductor, Die Code: 37, 5/16 in Stud, Copper
Color-Keyed 54147UF
Thomas & Betts Color-Keyed® 54147UF 54100 1-Hole Compression Connector Lug, 1 AWG Copper Conductor, Die Code: 37, 5/16 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

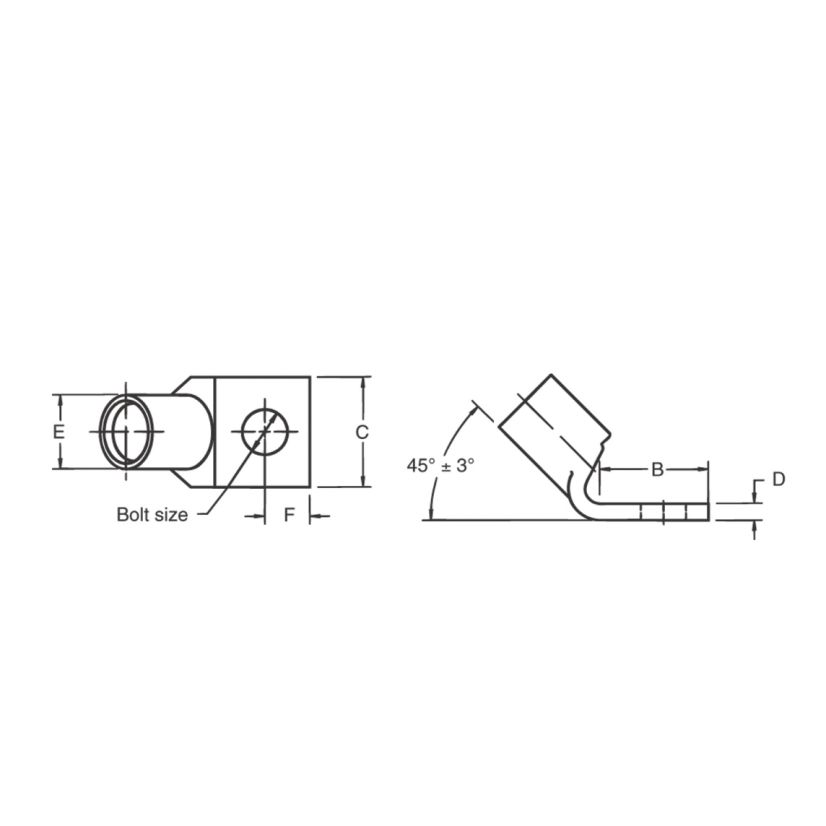

Color-Keyed® Compression Connector Lug, 1-Hole, Series: 54100, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kVAC, 5/16 in Stud, 45 deg Tongue, 0.93 in L x 0.68 in W x 0.11 in THK Tongue, Standard Barrel, 0.47 in Dia Barrel, Tin Electroplated Finish, 0.344 in Mounting Hole, Copper, Green
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.47 in Dia
Barrel TypeStandard
Conductor size1 AWG
Conductor TypeCopper
Country of OriginMX
Die Code37
Hole SizeMounting Hole Size: 0.344 in
ManufacturerThomas & Betts
Stud Size5/16 in
Tongue Size0.93 in L x 0.68 in W x 0.11 in THK
Tongue Type45 deg
Type / Style1-Hole
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
Peep holeHigh conductivity wrought copper constructionTin plated finish
Specifications
Tin Electroplated Finish
