Color-Keyed 54118NT06
Thomas & Betts Color-Keyed® 54118NT06 54100 1-Hole Compression Connector Lug With Peep Hole, 500 kcmil Copper Conductor, Die Code: 87, 3/8 in Stud, Copper
Color-Keyed 54118NT06
Thomas & Betts Color-Keyed® 54118NT06 54100 1-Hole Compression Connector Lug With Peep Hole, 500 kcmil Copper Conductor, Die Code: 87, 3/8 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

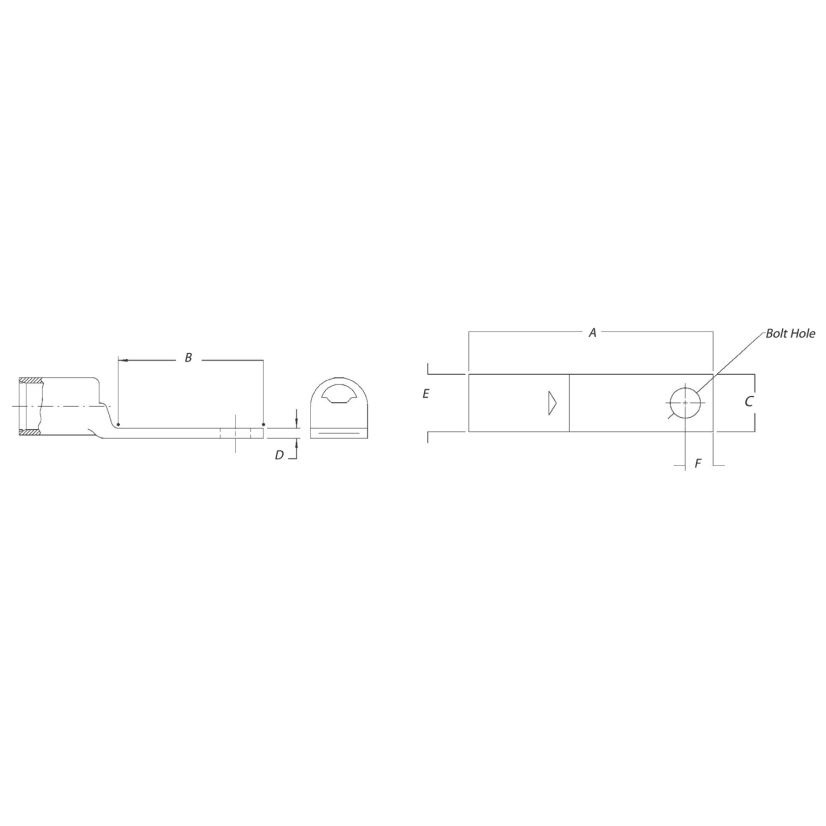

Color-Keyed® Compression Connector Lug, 1-Hole, Series: 54100, Copper Conductor, 500 kcmil Conductor, Die Code: 87, 35 kVAC, 3/8 in Stud, Narrow Tongue, 1.25 in L x 1.1 in W x 0.218 in THK Tongue, 3-1/4 in Overall Length, Standard Barrel, 1.1 in Dia Barrel, Tin Plated Finish, 0.406 in Mounting Hole, Copper, Brown
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size1.1 in Dia
Barrel TypeStandard
Conductor size500 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code87
Hole SizeMounting Hole Size: 0.406 in
ManufacturerThomas & Betts
Overall Length3-1/4 in
Stud Size3/8 in
Tongue Size1.25 in L x 1.1 in W x 0.218 in THK
Tongue TypeNarrow
Type / Style1-Hole
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
High conductivity wrought copper constructionNarrow width tongue and barrel, engineered for dimensional consistency the entire length of the lugPerfect for connections in limited space applicationsDouble chamfered barrel eases insertion of wireElectro-tin plated for corrosion-resistanceColor-Keyed® marking system makes connections and verification easy
Specifications
Tin Plated Finish
