Color-Keyed 54109B

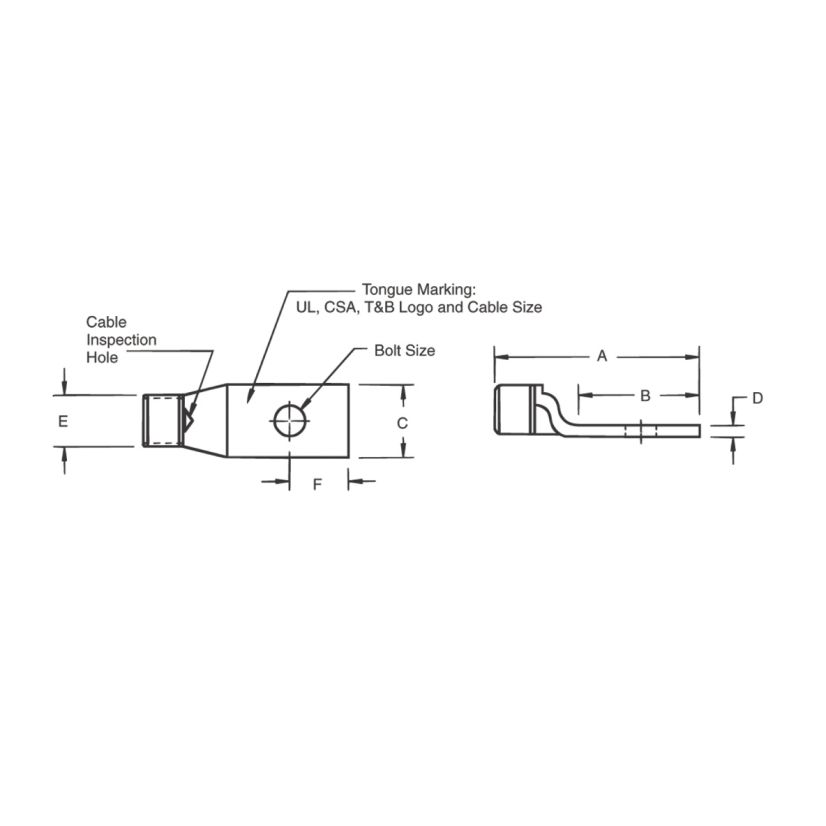

Thomas & Betts Color-Keyed® 54109B 54100 1-Hole Bottom Stacking Compression Connector Lug With Peep Hole, 1/0 AWG Copper Conductor, Die Code: 42, 3/8 in Stud, Copper
Color-Keyed 54109B
Thomas & Betts Color-Keyed® 54109B 54100 1-Hole Bottom Stacking Compression Connector Lug With Peep Hole, 1/0 AWG Copper Conductor, Die Code: 42, 3/8 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Color-Keyed® Compression Connector Lug, 1-Hole Bottom Stacking, Series: 54100, Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kVAC, 3/8 in Stud, Straight Tongue, 0.93 in L x 0.75 in W x 0.13 in THK Tongue, Standard Barrel, 0.52 in Dia Barrel, Tin Plated Finish, 0.406 in Mounting Hole, Copper, Pink
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.52 in Dia
Barrel TypeStandard
Conductor size1/0 AWG
Conductor TypeCopper
Country of OriginMX
Die Code42
Hole SizeMounting Hole Size: 0.406 in
ManufacturerThomas & Betts
Stud Size3/8 in
Tongue Size0.93 in L x 0.75 in W x 0.13 in THK
Tongue TypeStraight
Type / Style1-Hole Bottom Stacking
Voltage35 kVAC
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
High conductivity wrought copper construction
Specifications
Tin Plated Finish
