Color-Keyed 53123
Thomas & Betts Color-Keyed® 53123 1-Hole Heavy Duty Compression Lug, 750 kcmil Copper Conductor, Die Code: 112, 1/2 in Stud, Copper
Color-Keyed 53123
Thomas & Betts Color-Keyed® 53123 1-Hole Heavy Duty Compression Lug, 750 kcmil Copper Conductor, Die Code: 112, 1/2 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

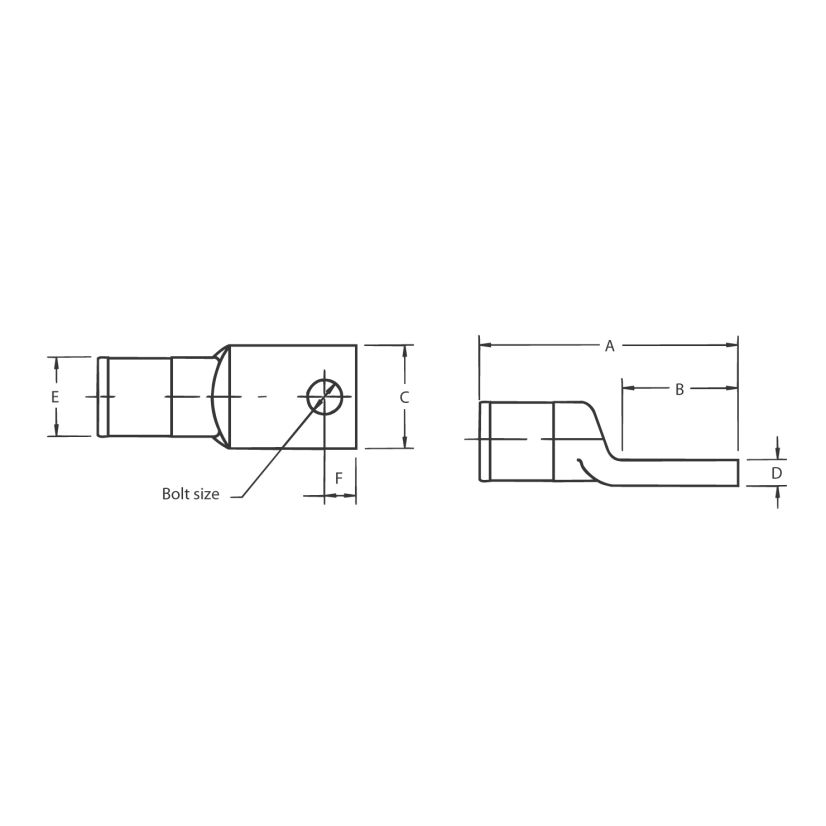

Color-Keyed® Compression Lug, 1-Hole Heavy Duty, Copper Conductor, 750 kcmil Conductor, Die Code: 112, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 2-1/8 in L x 1-5/8 in W x 7/16 in THK Tongue, 4-3/16 in Overall Length, Blind End/Standard Barrel, 105 deg C, 0.531 in Mounting Hole, Copper, Purple
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeBlind End/Standard
Conductor size750 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code112
Hole SizeMounting Hole Size: 0.531 in
ManufacturerThomas & Betts
Overall Length4-3/16 in
Stud Size1/2 in
Tongue Size2-1/8 in L x 1-5/8 in W x 7/16 in THK
Tongue TypeStraight
Type / Style1-Hole Heavy Duty
Voltage600 VAC to 35 kV
Documents
Applications
For providing a high degree of reliability in electrical wiring
Features
Electro tin plated for corrosion resistanceChamfered barrels provide ease of strand entry and inspection hole facilitates full insertion of the conductorCable area clearly identified on lugRound hole
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E9809|CSA Certified
