Color-Keyed 256-30695-1405
Thomas & Betts Color-Keyed® 256-30695-1405 1-Hole Compression Connector Lug With Peep Hole, 700 kcmil Copper Conductor, Die Code: 99, 1/2 in Stud, Copper
Color-Keyed 256-30695-1405
Thomas & Betts Color-Keyed® 256-30695-1405 1-Hole Compression Connector Lug With Peep Hole, 700 kcmil Copper Conductor, Die Code: 99, 1/2 in Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

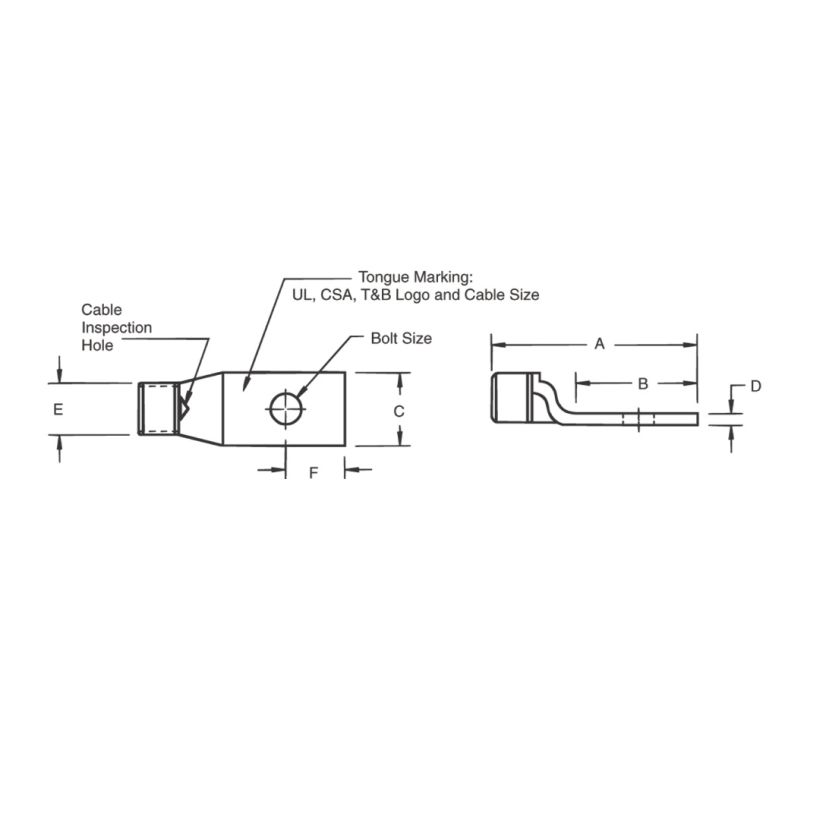

Color-Keyed® Compression Connector Lug, 1-Hole, Copper Conductor, 700 kcmil Conductor, Die Code: 99, 35 kVAC, 1/2 in Stud, 1.29 in L x 1.81 in W x 0.28 in THK Tongue, 3.29 in Overall Length, Standard Barrel, 1-1/2 in Dia Barrel, 21/32 in Hole Spacing, Tin Plated Finish, Copper, Pink
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1-1/2 in Dia
Barrel TypeStandard
Conductor size700 kcmil
Conductor TypeCopper
Country of OriginMX
Die Code99
ManufacturerThomas & Betts
Overall Length3.29 in
Stud Size1/2 in
Tongue Size1.29 in L x 1.81 in W x 0.28 in THK
Type / Style1-Hole
Voltage35 kVAC
Documents
Features
High conductivity wrought copper construction21/32 in hole to tongue end
Specifications
21/32 in Hole Spacing, Tin Plated Finish
