Color-Keyed 256-30695-1351
Thomas & Betts Color-Keyed® 256-30695-1351 1-Hole Compression Connector Lug With Peep Hole, 8 AWG Copper Conductor, Die Code: ERG2002, #8 Stud, Copper
Color-Keyed 256-30695-1351
Thomas & Betts Color-Keyed® 256-30695-1351 1-Hole Compression Connector Lug With Peep Hole, 8 AWG Copper Conductor, Die Code: ERG2002, #8 Stud, CopperOut of Stockmore info
|
Out of Stockmore info
|
Product Description

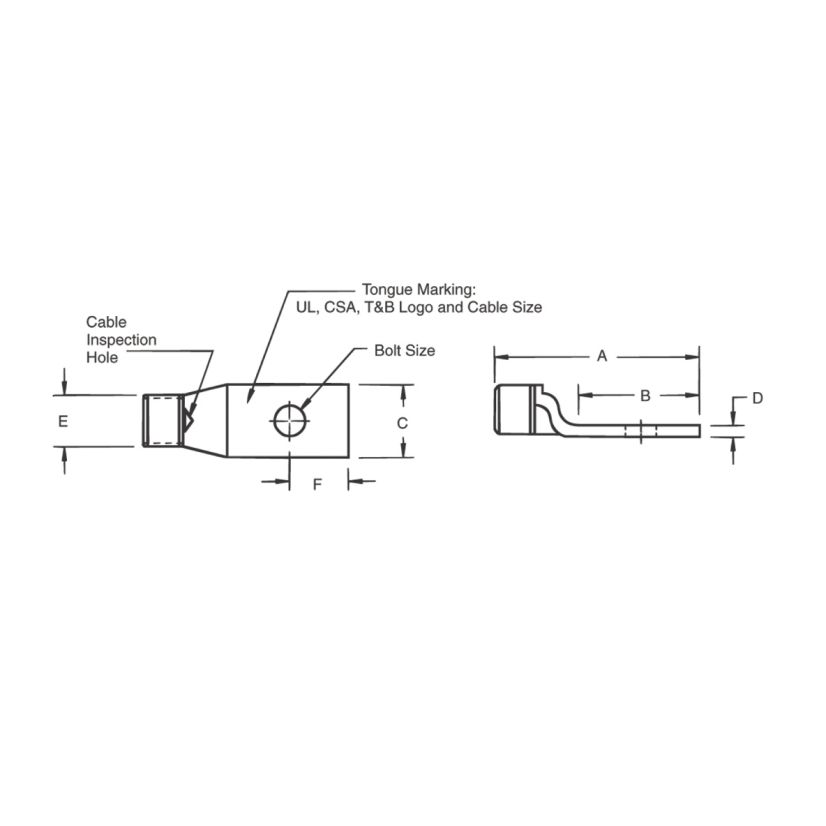

Color-Keyed® Compression Connector Lug, 1-Hole, Copper Conductor, 8 AWG Conductor, Die Code: ERG2002, 35 kV, #8 Stud, Straight Tongue, 0.68 in L x 0.36 in W x 0.05 in THK Tongue, 1.36 in Overall Length, Standard/Straight With Inspection Window Barrel, 0.2 in Dia Barrel, TiN Coated, Copper
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.2 in Dia
Barrel TypeStandard/Straight with Inspection Window
Conductor size8 AWG
Conductor TypeCopper
Country of OriginMX
Die CodeERG2002
ManufacturerThomas & Betts
Overall Length1.36 in
Stud Size#8
Tongue Size0.68 in L x 0.36 in W x 0.05 in THK
Tongue TypeStraight
Type / Style1-Hole
Voltage35 kV
Documents
Features
High conductivity wrought copper constructionNEMA 570/2B enclosure typeNickel plated finish
Specifications
TiN Coated
