Bussmann Series BMM603-3PQ

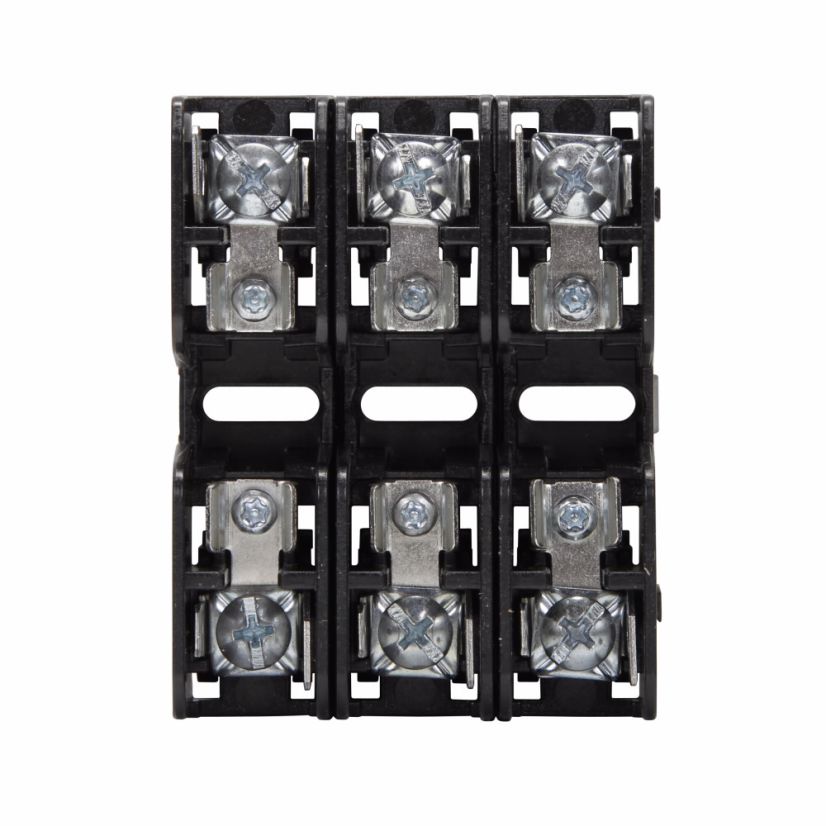

EATON Bussmann Series BMM603-3PQ Modular Midget Fuse Block, 600 VAC, 30 A, 18 to 10 AWG Wire, 3 Poles
Bussmann Series BMM603-3PQ
EATON Bussmann Series BMM603-3PQ Modular Midget Fuse Block, 600 VAC, 30 A, 18 to 10 AWG Wire, 3 PolesIn Stock: 15More Info
|
In Stock: 15More Info
|
Product Description
EATON Bussmann Series Midget Fuse Block, Modular, Series: BMM, 600 VAC, 30 A, 3 Pole, Class: CC, 1/4 in Quick Connect/Pressure Plate, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: Fast Acting 250 VAC BAF, Fast Acting 600 VAC KTK, Fast Acting 600 VAC/VDC KLM, Time Delay 250 VAC FNM, Time Delay 500 VAC FNQ, Class aM and gG/gL IEC Industrial Fuse, Thermoplastic, 3 in L x 2.4 in W x 1.3 in H
Attributes
Documents
Features
Attributes
Amperage Rating30 A
ClassCC/Midget
Connection Type1/4 in Quick-Connect/Pressure Plate
Dimensions3 in L x 2.4 in W x 1.3 in H
Fuse Diameter13/32 in
Fuse Length1.5 in
MaterialThermoplastic
Mounting TypeDIN Rail/Panel
Number of Poles3
SeriesBMM
Size of Wire18 to 10 AWG
Suitable For Use WithBAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses
Temperature Rating-40 to 120 deg C
Country of OriginMX
ManufacturerEaton Corp
Type / StyleModular
Voltage Rating600 V
Documents
Features
Blocks are fully modular with a snap together design that provides tool less assembly of multiple-pole blocks at point-of-use to reduce inventory and save assembly time and laborDIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory costCompact footprint consumes minimal panel spaceOptional see through cover enhances safety with IP20 finger safe protection, lockout/ tag out capability and open circuit indicationEasy circuit identification with available universal marker labels for fuse block coversTin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brassTerminal options to meet application needs including 1/4 in spade quick connect terminals for faster panel assembly18 to 10 AWG copper wire
