Appleton CG90-6250

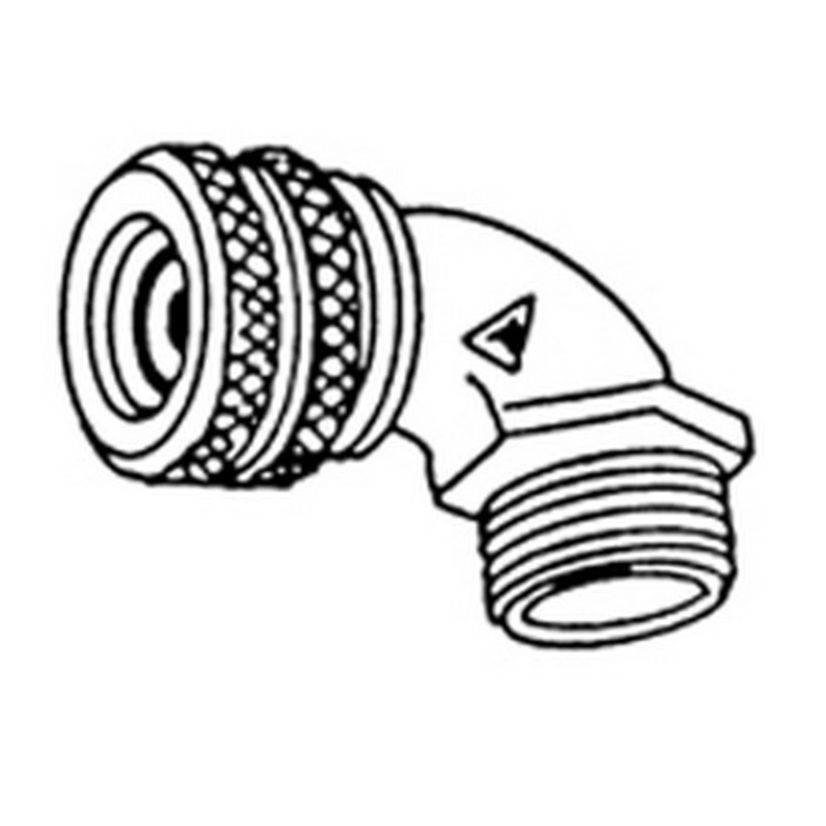

AppletonĀ® CG90-6250 Liquidtight Strain Relief Connector, 1/2 in Trade, 5/8 to 3/4 in Cable Openings, Cast Aluminum
Appleton CG90-6250
AppletonĀ® CG90-6250 Liquidtight Strain Relief Connector, 1/2 in Trade, 5/8 to 3/4 in Cable Openings, Cast AluminumNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG90-6250
Werner Part #15715
UPC781381189804
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #CG90-6250
Werner Part #15715
UPC781381189804
Product Description
AppletonĀ® Liquidtight Strain Relief Connector, 1/2 in, Cable Openings: 5/8 to 3/4 in, Threaded, 90 deg, Cast Aluminum, Orange, 1-1/4 in OD
Attributes
Documents
Features
Attributes
Angle90 deg
Cable Openings5/8 to 3/4 in
ColorOrange
Connection TypeThread
Dimensions1-1/4 in OD
ManufacturerEmerson Electric
MaterialCast Aluminum
Trade Size1/2 in
Type / Style90 DEG Liquidtight Strain Relief Connector
Country of OriginMexico
Documents
Features
Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designedNeoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cordSteel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortionLarge aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head capFor particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectorsProvide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
