3M 7000005975
3M™ 7000005975 Heat Shrink Tubing, 1-1/2 in ID Expanded, 3/4 in ID Recovered, 0.04 in THK Wall Recovered, 100 ft L, Polyolefin, Black
3M 7000005975
3M™ 7000005975 Heat Shrink Tubing, 1-1/2 in ID Expanded, 3/4 in ID Recovered, 0.04 in THK Wall Recovered, 100 ft L, Polyolefin, BlackProduct Description
3M™ Heat Shrink Tubing, Series: FP301, 0.6 kVAC, 1-1/2 in Inner Dia Expanded, 3/4 in Inner Dia Recovered, Single (Thin) Wall, 0.04 in Wall Thickness Recovered, 8:1 Shrink, 100 ft Length, -55 to 135 deg C, 100 deg C Shrink, Polyolefin, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Cable EntryWire & Cable
Country of OriginUS
Inner Diameter Expanded1-1/2 in
Inner Diameter Recovered3/4 in
Length100 ft
Manufacturer3M
SeriesFP301
Shrink Ratio8:1
Shrink Temperature100 deg C
Type / StyleHeat Shrink Tubing
Voltage0.6 kVAC
Wall Thickness Recovered0.04 in
Wall TypeSingle (Thin)

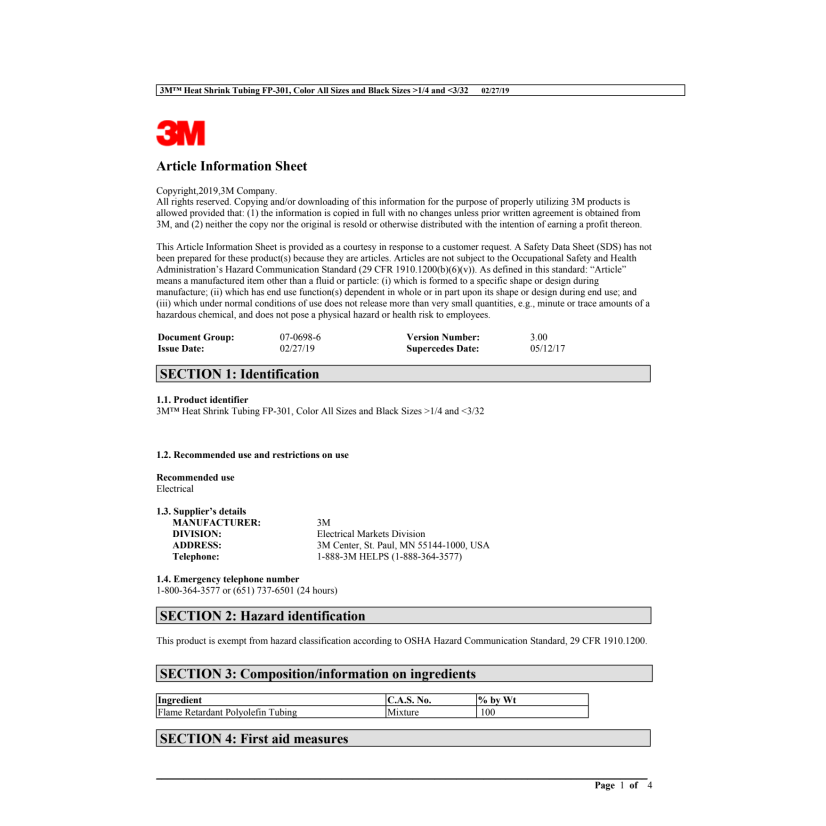

Documents
Applications
For lightweight wire harness covering, wire marking, wire bundling, component packaging and fire-resistant covering
Features
- Tubing comes in a bulk spool
- When freely recovered, the tubing will shrink to 50% of its as supplied internal diameter
- Recovered wall thickness is proportional to the degree of recovery
- 13000 psi secant modulus+/-5% longitudinal change
- Non-corrosive and non-nutrient fungus resistance
- 10 years shelf life
- Used as a shrink fit electrical insulation over cable splices and terminations
- 1 x 10^15 Ohm-cm volume resistivity
- Low temperature flexibility no cracking, splitting for 4 hr at -55 deg C
- Self-extinguish flammability property
- 900 V/mil dielectric strength
- Heat shock, no dripping, flowing, cracking, passes mandrel wrap test for 4 hr at 250 deg C
- 175 % elongation for 336 hr at 175 deg C heat aging
- 0.2% water absorption
Specifications
Standards/Approvals: UL 224
