Appleton EYF-75

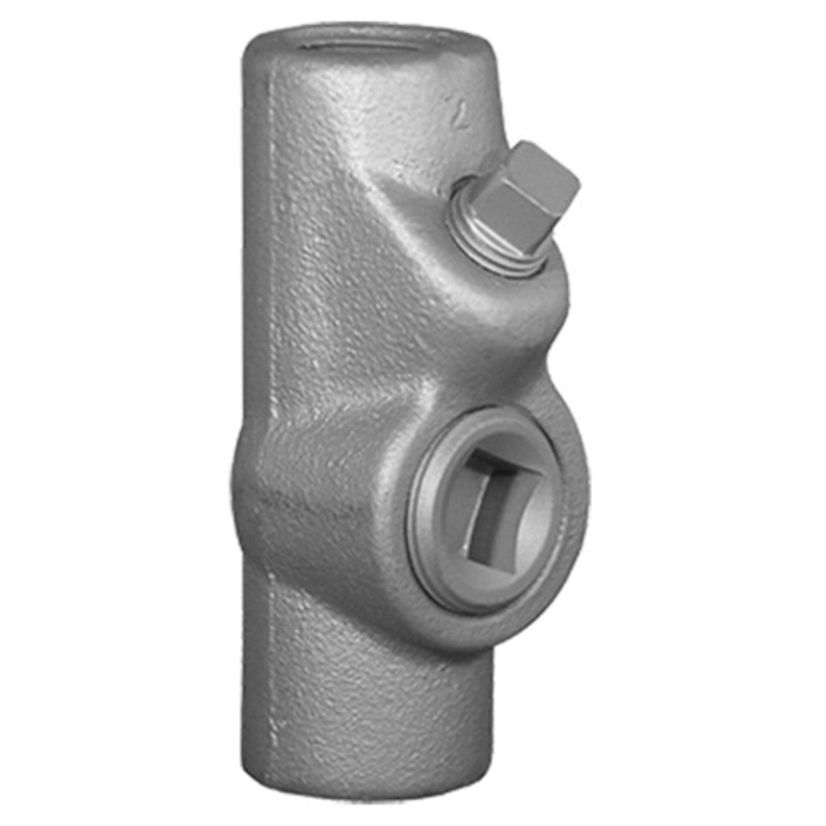

Emerson Electric Appleton® UNILETS® EYF-75 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated
Appleton EYF-75
Emerson Electric Appleton® UNILETS® EYF-75 Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 3/4 in, For Use With IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple CoatedIn Stock: 361more info
|
BrandAppleton
MFG #EYF-75
Werner Part #15836
UPC781381135122
In Stock: 361more info
|
BrandAppleton
MFG #EYF-75
Werner Part #15836
UPC781381135122
Product Description
Appleton® UNILETS® Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EY Series, 3/4 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 3.5 in L x 1.38 in W
Attributes
Documents
Features
Specifications
Warranty
Attributes
Country of OriginMexico
Dimensions4.31 in L x 1.75 in W
FinishTriple Coated
GTIN00781381135122
ManufacturerEmerson Electric
MaterialMalleable Iron
Size3/4 in
Suitable For Use WithIMC/Threaded Rigid Metallic Conduit
Type / StyleDust-Ignitionproof Explosionproof Raintight
Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
Specifications
Standards & Approvals: UL 886|UL 1203 File No. E10444|CSA C22.2 No. 30|CSA 065181, Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class III|RoHS Compliant
Warranty
Limited
