Leviton® 5334-I

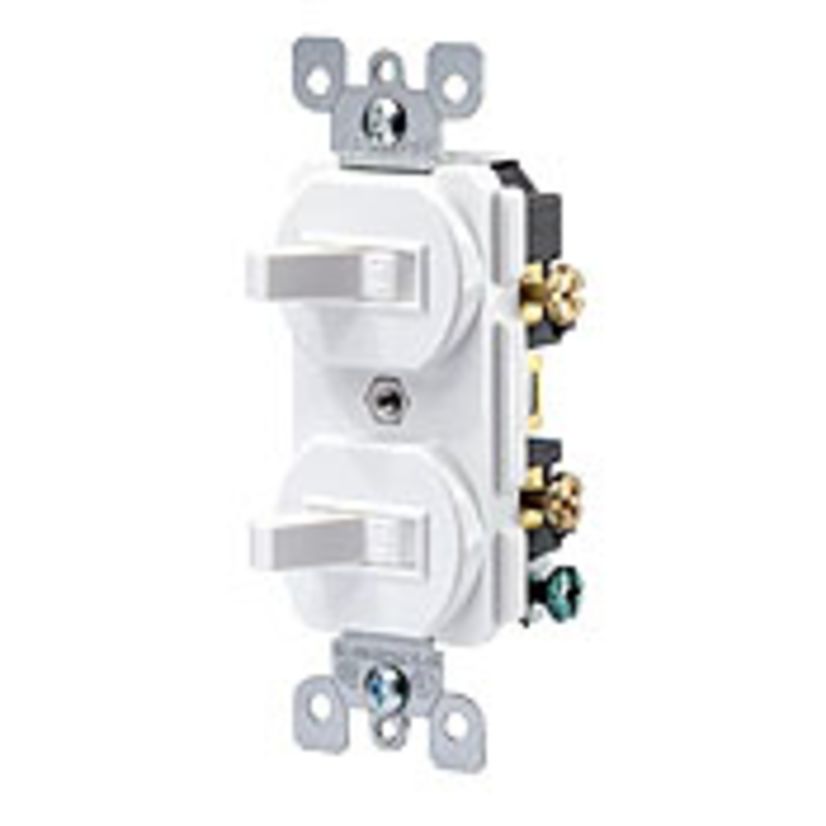

Leviton® 5334-I Traditional Commercial Grade Duplex Non-Grounding Combination Switch, 120/277 VAC, 20 A, 1 hp at 120 VAC, 1 Poles
Leviton® 5334-I
Leviton® 5334-I Traditional Commercial Grade Duplex Non-Grounding Combination Switch, 120/277 VAC, 20 A, 1 hp at 120 VAC, 1 PolesOut of StockMore Info
|
BrandLeviton®
MFG #5334-I
Werner Part #1312493
UPC078477233405
Out of StockMore Info
|
BrandLeviton®
MFG #5334-I
Werner Part #1312493
UPC078477233405
Product Description
Leviton® Combination Switch, Commercial Grade Duplex Non-Grounding, Series: Traditional, 120/277 VAC, 20 A, 1 hp at 120 VAC, 1 Poles, 20 A at 120/277 VAC Contact, NEMA 5-20R Enclosure, Surface, 4.2 in H x 1.62 in W x 16 in D, 100 Cycles Operating Cycles, Environmental Conditions: -40 to 120 deg C Operating Temperature, Thermoplastic/Steel, Ivory
Attributes
Documents
Features
Specifications
Attributes
ColorIvory
Country of OriginMX
Electrical Ratings15 A at 120/277 VAC
Enclosure TypeNEMA 5-20R
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Size4.19 in H x 1.3 in W x 1.08 in D
Temperature Rating-20 to 60 deg C Operating Temperature
Type3-Way Duplex Heavy Duty
Type / StyleCommercial Grade Duplex Non-Grounding
Documents
Features
AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivityAll devices have a grounding screw, except where notedTerminal screws accept up to #12 AWG copper or copper clad wireFits standard wallboxesBreak-OFF tabs on devices with switches permit conversion to separate feedsWithstands 1500 VAC for 1 min dielectric voltage100 cycles of overload at 4.8 times rated currentSide wired connection
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 111 File No. 152105 File No. LR3413|NEMA WD-1/WD-6|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating
