3M™ 7000006102

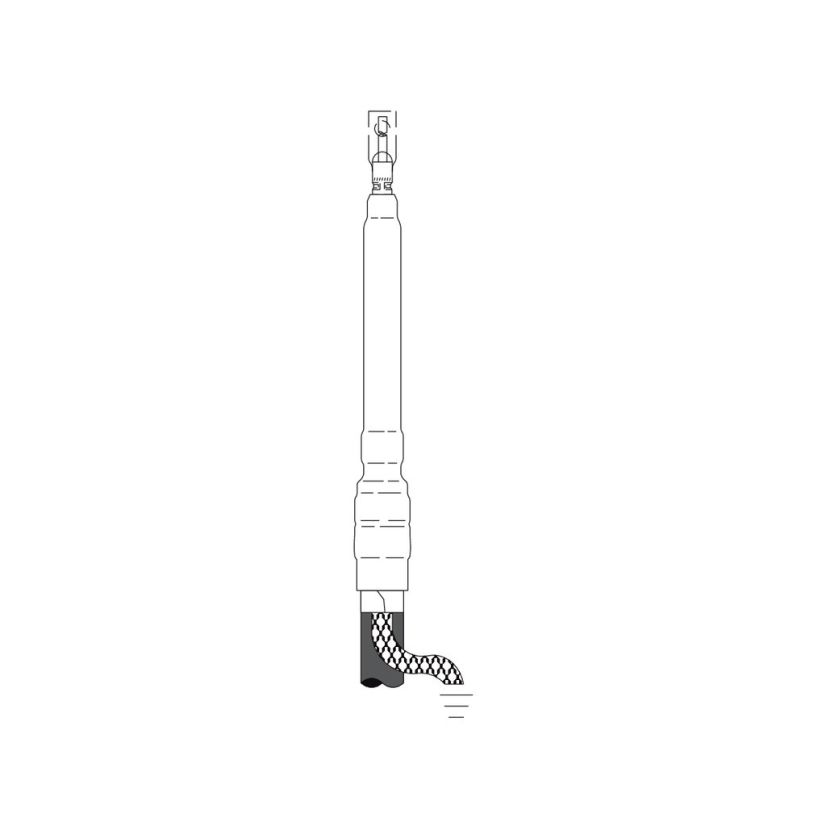

3M™ 7000006102 QT-III 7620-T Cold Shrink Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
3M™ 7000006102
3M™ 7000006102 QT-III 7620-T Cold Shrink Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, BlackIn Stock: 20More Info
|
Brand3M™
MFG #7000006102
Werner Part #225855
UPC054007417613
In Stock: 20More Info
|
Brand3M™
MFG #7000006102
Werner Part #225855
UPC054007417613
Product Description
3M™ Termination Kit, Cold Shrink, Series: QT-III 7620-T, Specifications: 3-Terminal, 5 to 15 kV Voltage, 4/0 AWG to 750 kcmil Conductor, 110 kV BIL Rated, 0.83 to 1.53 in OD Cable Insulation, 12 in L Max Installed, 1 Piece, For Use With: Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Manufacturer3M
MaterialSilicone Rubber
SeriesQT-III 7620-T
Suitable For Use WithSingle Core Tape Shield, UniShield and Wire Shield Power Cable
TypeCold Shrink
Type / StyleCold Shrink
Features
- High dielectric constant material regulates the distribution of electric field stress
- Non-tracking, molded, silicone rubber insulation offers durability
- Conductor size by voltage (5 kV) 500 to 750 kcmil, (8 kV) 350 to 700 kcmil, (15 kV) 4/0 AWG to 500 kcmil
Specifications
3-Terminal, 5 to 15 kV Voltage, 4/0 AWG to 750 kcmil Conductor, 110 kV BIL Rated, 0.83 to 1.53 in OD Cable Insulation, 12 in L Max Installed
