3M™ 7000006101

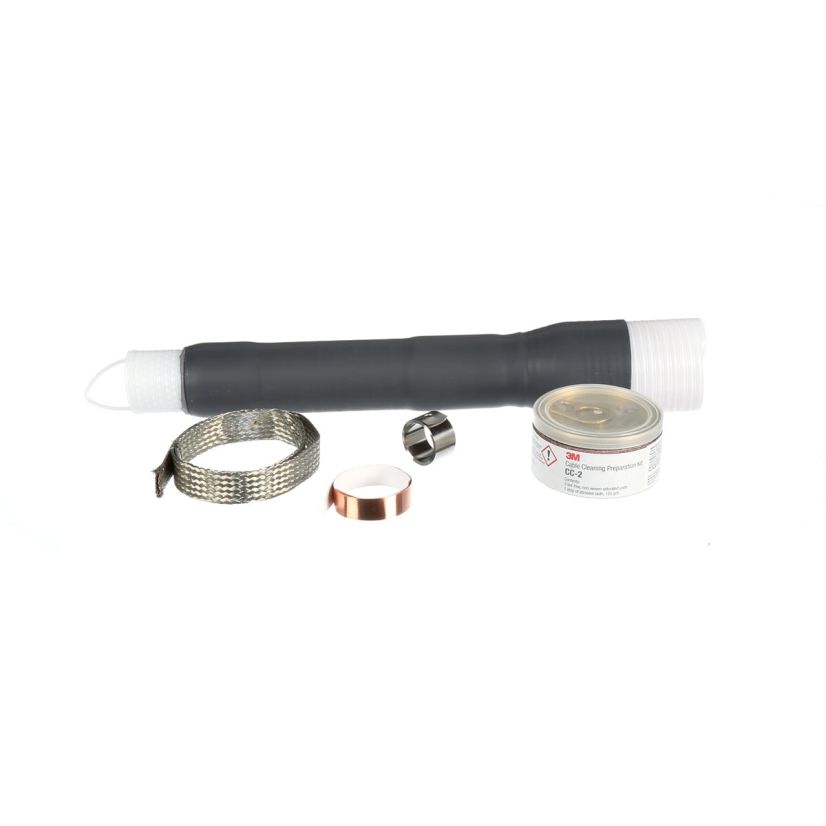

3M™ 7000006101 QT-III 7620-T Cold Shrink Non-Skirted Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
3M™ 7000006101
3M™ 7000006101 QT-III 7620-T Cold Shrink Non-Skirted Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, BlackIn Stock: 14More Info
|
Brand3M™
MFG #7000006101
Werner Part #240022
UPC054007417606
In Stock: 14More Info
|
Brand3M™
MFG #7000006101
Werner Part #240022
UPC054007417606
Product Description
3M™ Termination Kit, Cold Shrink Non-Skirted, Series: QT-III 7620-T, Specifications: 3-Terminal, 5 to 15 kV Voltage, 2 to 400 kcmil Conductor, 110 kV BIL Rated, 0.64 to 1.08 in OD Cable Insulation, 12 in L Max Installed, 1 Piece, For Use With: Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUS
Manufacturer3M
MaterialSilicone Rubber
SeriesQT-III 7620-T
Suitable For Use WithSingle Core Tape Shield, UniShield and Wire Shield Power Cable
TypeCold Shrink Non-Skirted
Type / StyleCold Shrink Non-Skirted
Documents
Features
- High dielectric constant material regulates the distribution of electric field stress
- Non-tracking, molded, silicone rubber insulation offers durability
- Conductor size by voltage (5 kV) 4/0 AWG to 400 kcmil, (8 kV) 3/0 AWG to 300 kcmil, (15 kV) 2 to 4/0 AWG
Specifications
3-Terminal, 5 to 15 kV Voltage, 2 to 400 kcmil Conductor, 110 kV BIL Rated, 0.64 to 1.08 in OD Cable Insulation, 12 in L Max Installed
